Acid Transfer Pumps - Viton 236 Series

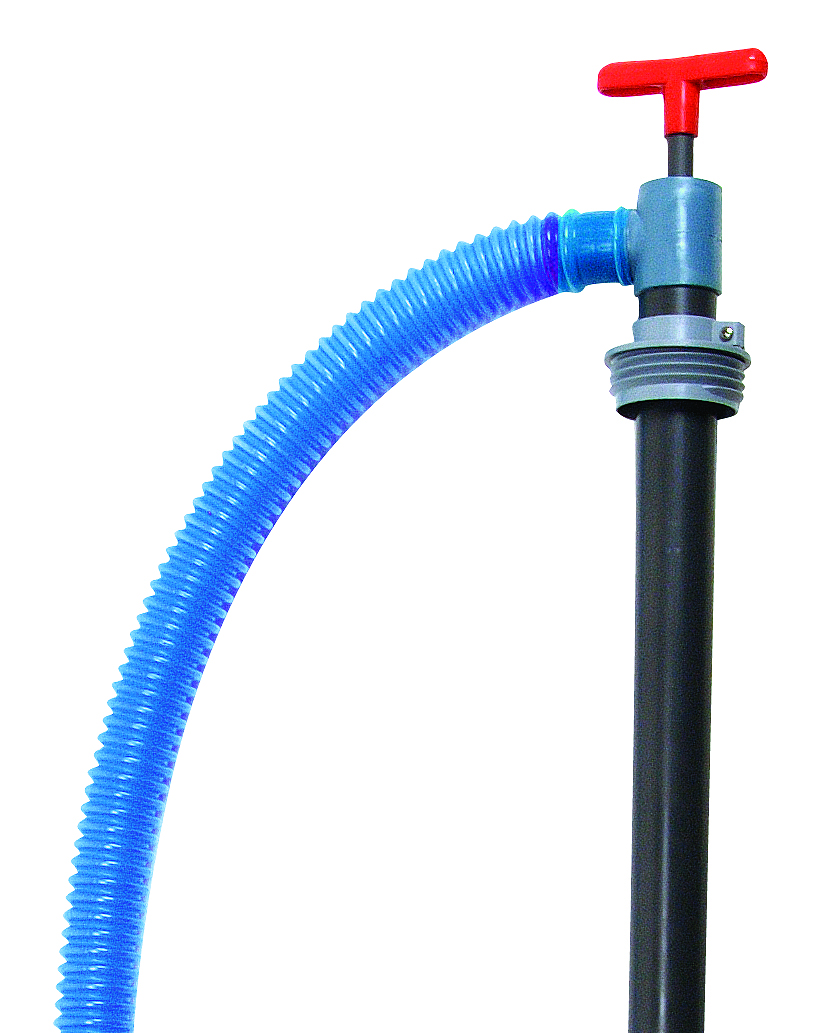

The
Beckson 236 series
of hand pumps
eliminate the dangerous practice of
lifting or tilting drums and carboys. The pumps are designed to safely
transfer
most acids and easily fit most drums or containers. The pump barrel and
shaft
are PVC, while the valves and patented seal are Viton.Beckson’s 236 acid transfer pumps are 38” long, 1-1/2” in diameter and come with either a 1-1/4” x 36” or a 1-1/4” x 72” polyethylene discharge hose.
The pump transfers at a rate of 28 oz. per stroke.
Individually packaged.
Safety Sheet Download
See adapter guide for proper adapter.
236PF SERIES UL LISTED for transferring Sulphuric Acid (H2SO4) in concentrations up to 50% maximum at 120° F maximum.
| Stock Number | Adapter | Hose Length |
| 236PF3 | None | 3 feet |
| 236PF6 | None | 6 feet |
| 236PF3-S | Std 2" IPS Bung | 3 feet |
| 236PF6-S | Std 2" IPS Bung | 6 feet |
| 236PF3-B | Buttress 2" Coarse Thread | 3 feet |
| 236PF6-B | Buttress 2" Coarse Thread | 6 feet |
| 236PF3-G | Glass Carboy | 3 feet |
| 236PF6-G | Glass Carboy | 6 feet |
| 236PF3-P | Poly Carboy | 3 feet |
| 236PF6-P | Poly Carboy | 6 feet |
WARNING: The 236PF Series is not compatible with some alkalis, acetic acid (30%), and methyl alcohol.
Acid Transfer Pumps - Viton® CP Series
The Beckson CP series is for those times when less volume or a smaller discharge hose is required. These pumps have the same features as the 236 series. The CP acid transfer pumps are 1-1/4” in diameter and have a 9/16” PVC discharge hose. Adapters are available to accommodate a variety of containers.
| Stock Number |
Barrel Length |
Hose
Length |
Adapter | Volume /Stroke |
| CP1209 | 12" | 9" | None | 5 oz. |
| CP1209S | 12" | 9" | Std 2" IPS | 5 oz. |
| CP3630S | 36" | 30" | Std 2" IPS | 11 oz. |
